 Halo sobat hamtronik,

Dalam dunia Radio sudah tidak asing lagi dengan istilah PLL tentunya. Yaitu sebuah rangkaian untuk mengunci Frequensi tertentu agar tidak geser kemana-mana.

Pada kesempatan ini saya akan berbagi cara membuat PLL universal, maksudnya bisa digunakan pada osilator apapun yang belum memiliki sistem PLL. Tentunya bisa mode Rx maupun Tx. Menggunakan Singgle Chip PLL LM7001 yang dikendalikan oleh mikrokontroller atau MCU Atmega8.

Tidak hanya bisa mengunci ossilator Transmiter namun juga bisa digunakan untuk mengunci Receiver Fm dengan Tuner VCO, misalnya Tuner mitsumi FAE347.

Fitur yang ditanamkan pada PLL universal V1.1 ini adalah:

1. Mode RX dengan IF minus atau Plus 10.7MHz bisa dissetting dengan jumper
2. Singnal Bar
3. Stereo indikator
4. Memori mode VFO dan Memori Chanel sampai 40
5. Scan (kusus RX)
6. Squel setting
7. Step bisa setting 25 50 dan 100 KHz
8. TX mode.

Cara Pasang

Cara pasang PLL ini sangat mudah

a. Mode TX

Pada mode tx tinggal sambung pin OSC pada osc out pemancar anda, dan VT sambung pada Potensio tuning kaki tengah (potensio tuning dilepas).

b. Mode Rx

• Sambung OSC pada osc out
• Sambung VT pada VT tuner VCO
• Sambung SD pada Signal Indikator, misal pada IC LA1260 sabung pada pin 7.
• Sambung ST pada indikator Stereo, misal pada IC LA3361 pada pin 6.

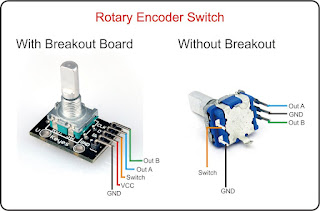

Hanya ada 2 piranti kontrol pada modul ini, yaitu Rotary encoder dan tombol scan.

PLL ini sudah ditest pada kit tuner mitsumi 6700 dan FAE bekerja sangat bagus.

oke brow langsung saja berikut skema dan layout PCB. Tidak lupa saya sertakan file hex untuk coba-coba. Jika anda tidak mau repot silahkan kunjungi Toko online kami di Tokopedia dan shopee dengan kata kunci hamtronik. Kami juga jual IC Program siap pakai.

Ukuran PCB 100x38mm

cara pemasangan dan keterangan lainnya silahkan tonton video berikut

Untuk anda yang ingin berexperimen kami sediakan hex file percobaan, copas kodode dibawah ini lalu paste di notepad kemudian save as dengan nama "lm7001.hex" dan file type "ALL FILE"  lebih jelasnya silahkan tonton video berikut:

LM7001.hex

IC ATMEGA8 fusbit default internal clock 1 MHz, jadi jika beli baru IC atmega8 tidak usah diutak-utik fusebitnya ya gaes..

update 27 06 2022

Masa Trial diperpanjang gaes

update 2 Juli 2024 : penambahan masa trial

update versi V1.1 disini

:060000002DC1FECFFDCF73

:10000600FCCFFBCFFACFF9CFF8CFF7CFF6CFF5CFAE

:10001600F4CFF3CFF2CFF1CFF0CFEFCFEECFEDCFDE

:100026001F110A0404040400000000001818180038

:10003600000000001B1B1B00000000181818180009

:100046000000001B1B1B1B000000181818181800C6

:1000560000031B1B1B1B1B00181818181818180068

:100066001027E80364000A000100001000011000D8

:10007600010020202052455345545420414C4C2029

:100086002020002020464D20205245434549564514

:100096005220200020464D20205452414E534D49B7

:1000A6005445522000202068616D74726F6E696B32

:1000B6002E636F6D20004672696D776172652065EB

:1000C600787069726564003D3D3D3D3D3D3D3D3D79

:1000D6003D3D3D3D3D3D3D0020202020002020208F

:1000E6002020002020202020200053746572656F98

:1000F600004D6F6E6F20200056464F202020202096

:1001060020202020204D487A004D5B20205D2020B5

:100116002020202020204D487A00300025640053FE

:1001260045543A20203C3C2D204F4B202D3E3E008E

:100136003E204D454D4F525920204D4F4445203CC1

:10014600003E20202020535155454C2020202020C1

:100156003C003E2020465245512020535445502015

:10016600203C003E204652455120544F20534156D4

:1001760045203C002A2A204558495420204D454E0A

:1001860055202A2A004D4F4445203E5550204F4BBE

:1001960020444F574E3C003E3E202020202056460D

:1001A6004F202020203C3C003E3E2020204D454D47

:1001B6004F52592020203C3C0053514C203E555074

:1001C600204F4B20444F574E3C00535155454C3A17

:1001D6002020202020202020202000535445503A63

:1001E600202020202020204B487A200053415645CD

:1001F6003E5550204F4B20444F574E3C00544F2005

:100206004348414E454C3A202020202020005343AD

:10021600414E2E2E000080C001002D4E414E004959

:100226004E4600000200600187000300620186005E

:1002360011006501E10102007601870011007801D5

:10024600030202008901870002009F011C020100CF

:10025600A3011E020000F894EE27ECBBF1E0FBBF01

:10026600EBBFE5BF8DE0A2E0BB27ED938A95E9F7EA

:1002760080E094E0A0E6ED930197E9F7EAE2F2E088

:1002860085919591009761F0A591B591059015908E

:10029600BF01F00105900D920197E1F7FB01F0CF48

:1002A600EFE5EDBFE4E0EEBFC0E6D1E09EC0AA9365

:1002B600D5DBEA81EE0FEE0FEE0FE0640E2F10E0B5

:1002C600183060F40A930395EC81FD813196EC8336

:1002D600FD833197A49176D41F5FF2CF17C524977B

:1002E60077D7A6D9DF01CB01E0E0F0E06AE774E456

:1002F60079DA77D7E9E1E71519F475D7E3E002C0B3

:1003060072D7E2E0EA9372D76ED660C7AA93E88105

:10031600E064E7B983E08A95F1F7369A349BFECF1D

:10032600349AE4B1F5B1C6C481E08A95F1F708952F

:10033600AA931A9310E0183078F4F6DFE981E07892

:1003460011F0929A01C09298919AE981EE0FE98391

:10035600EBDF91981F5FEFCF188144C440DB1A93FF

:1003660010E01031A8F4E0DFE981E17011F0929A13

:1003760001C09298919AE981FA816B817C81B1DA08

:10038600E983FA836B837C83CFDF91981F5FE9CF84

:100396001881BDC4AA931A93E981E295E07F1E2FC6

:1003A6001429839B11C0B69906C023D7EC5CF94289

:1003B6006040704005C01DD7E453F64D6F4F7F4F28

:1003C600EA83FB836C837D8319D71BD71FD7C6DAD5

:1003D6001FD7AADF9098909A14D7C0DFA12FA8DF65

:1003E6009098A2DF188126960895E8EBE7BBE7E42C

:1003F600E8BBEFE0E4BBE0E0E5BBE7E0E1BBE8EF4C

:10040600E2BBE0E4E7B9E1E8E6B9E0E0E0BFA0E19D

:100416002BD4E6E2F0E001D7A1E049DFEEE2F0E01E

:10042600FCD6A2E044DFE6E3F0E0F7D6A3E03FDF48

:10043600EEE3F0E0F2D6A4E03ADFE6E4F0E0EDD653

:10044600A5E035DFEEE4F0E0E8D6A6E030DFE6E54D

:10045600F0E0E3D6A7E02BDFEEE5F0E0DED6A8E09D

:1004660026DFDED6D2DAEF3F10F0DAD6DCD6D8D6E3

:10047600DDD610F4D5D6D7D6D3D6DBD6B09929C0DB

:10048600DCD6A8E7B0E0DED3DBD6CDD6DCD6ECE012

:10049600D0DADCD6ECE1F5E2C4DA5524E9E25E1600

:1004A60078F4E52DD6D6EA0FFB1FBF01A52DEAE0AD

:1004B600EA9FF001E05FF84DDB01B3DA5394EECF2B

:1004C600CED6E4E1B6DACED6E3E0B3DAA8EEB3E010

:1004D6003BD8CBD611F4BAD602C0CBD6CDD691DA5C

:1004E600CED6D8D69CD2E5D6EBD6839B03C0A9E858

:1004F600B0E002C0AAE9B0E0A5D3E4D6E6D6ABEAFE

:10050600B0E0A0D3A0EDB7E01FD86ED389D67DDAD0

:10051600E43650F0D7D6D4D6ACEBB0E0D8D6D5D6A4

:10052600ADECB0E08FD3FFCFA0D609F4B2D088D619

:100536007DD609F40AD164D1F7CFFFCF8DDAA4E0D6

:10054600E5DE8F010B35E0E01E0728F0C2D6C4D6E3

:10055600A8E058D36FC00635E0E01E0728F0B9D6EC

:10056600BBD6A7E8B0E065C00135E0E01E0738F06D

:10057600B0D6BED6A6E046D3A7E8B0E05AC00C3443

:10058600E0E01E0728F0A5D6B3D6A6E8B0E051C035

:100596000734E0E01E0738F09CD6B4D6A4E032D388

:1005A600A6E8B0E046C00D33E0E01E0728F091D67D

:1005B600A9D6A5E8B0E03DC00333E0E01E0738F059

:1005C60088D6A8D6A4E01ED3A5E8B0E032C009328A

:1005D600E0E01E0728F07DD69DD6AEEDB0E029C03E

:1005E6000F31E0E01E0738F074D69AD6A2E00AD39F

:1005F600AEEDB0E01EC00531E0E01E0728F069D67A

:100606008FD6A3EEB0E015C00B30E0E01E0740F039

:1006160060D6A1E0F7D2A2E0F5D2A3EEB0E009C021

:1006260000240016010630F454D6A1E0EBD2A9EE60

:10063600B0E008D3F801F695E7959F0175D6D90184

:10064600F0E0AE17BF0710F4C79A01C0C7983A93F7

:100656002A93CCD59BD42A30E0E03E0730F4EEE076

:10066600EA932ED6A0E6B1E0DED2AFE8B1E0DBD267

:10067600A4E15DD6F8D9AAC5B29905C023D620D67D

:10068600A0EFB0E004C01ED61BD6A7EFB0E0DAD2CA

:100696000895DCD5B6D9F3D5FDD514D616D649D6E8

:1006A60010F4E7E001C0E6E0EA930FD656D657D637

:1006B6008E2E44DFE1DF6624E4E66E16C8F54FD6DB

:1006C60052D611F053D609F030C053D6B1F05CD6ED

:1006D600A136EAEEBE07E0E08E07E0E09E0760F096

:1006E6008DD552D693D5ECD8A0938B01B0938C01BF

:1006F60080938D0190938E010BC046D6A03EE5EA0D

:10070600BE07E1E08E07E0E09E0710F477D545D6F8

:10071600D0D5DBD50ED610F4E7E001C0E6E0EA93CB

:10072600D4D51BD646D692D57CD94AD66394C4CFA7

:10073600839B05C0859903C0AEE1F9D5C6D1B099B2

:1007460002C07BD501C0B5CF089593D595D559D9AB

:1007560096D5A0D5AED5B9D536D63BD6EA3018F45F

:10076600A0E2B1E06FD238D63ED645D610F4E7E027

:1007760001C0E6E0EA93A9D5F0D5F1D58E2EDEDEEE

:100786007BDF6624E4E66E1670F5E9D5ECD511F04C

:10079600EDD509F025C0EDD531F055D547D510F08A

:1007A60018D633D605C015D6E83210F44CD541D547

:1007B60060D562D526D963D56DD57BD586D503D6CA

:1007C60008D6EA3018F4A0E2B1E03CD205D60BD642

:1007D60012D610F4E7E001C0E6E0EA9376D5BDD57F

:1007E600EFD56394CFCF839B05C0859903C0AEE157

:1007F6009ED56BD1B09902C020D501C0C0CF089557

:100806001A9310E0A5E2B1E062D55FD5A8D58E2E89

:100816006624E4E66E1690F4A2D5A5D511F0A6D509

:1008260009F009C0A6D521F0113008F0115003C017

:10083600143008F41F5FC4D56394EBCFB0991CC085

:10084600ACE2B1E081D6103011F4CED13AC0E0D599

:1008560011F438D011C0E230A0E0FA0711F46AD0E2

:100866000BC0E330A0E0FA0711F4A9D005C0E430CC

:10087600A0E0FA0709F4F0D025D522D5A5E2B1E02B

:10088600E1D1C6D519F4A6E3B1E019C0E230A0E083

:10089600FA0719F4A7E4B1E012C0E330A0E0FA07C2

:1008A60019F4A8E5B1E00BC0E430A0E0FA0719F4AA

:1008B600A9E6B1E004C0309719F4AAE7B1E0C2D1C5

:1008C600A7CF7BC0FFD4FCD4ABE8B1E000D5FDD404

:1008D600CCD419F4ADE9B1E002C0AEEAB1E0B2D1D0

:1008E6003ED58E2E3CD53FD511F040D509F011C02E

:1008F60040D541F0A5D4E1E09CD8E4D4E6D4AEEAF4

:10090600B1E006C09DD48FD4DDD4DFD4ADE9B1E02B

:1009160099D156D5B0990CC090D4A7D411F496D4D9

:1009260002C0A7D4A9D46DD8AAD4B4D477D501C0AF

:10093600D9CF08951A93C6D4C3D4AFEBB1E0C7D4C8

:10094600C4D470D5F1D474D5A0EDB1E07BD1E7E085

:1009560077D503D504D58E2E02D505D511F006D54B

:1009660009F025C006D531F07AD460D410F0DCD475

:100976004CD505C0D9D4E43610F471D45AD4A4E0C9

:10098600C5DCDF01ECE0F0E0D6D71E2FCDD41E1774

:1009960010F4C79A01C0C798C7D4F0E03ED426D455

:1009A600F5D2E7E04DD5D9D4A2E6B1E03CD108D5E1

:1009B600B09902C042D401C0CFCF1991089582D414

:1009C60084D4A5E6B1E02FD12DD5E72D31D5E5E0CC

:1009D60037D5C3D4C4D4C7D411F0C8D409F018C0CD

:1009E600C8D431F02FD5E23010F02CD50ED505C085

:1009F60029D5E33010F436D41CD411D013D5E72D05

:100A060017D5E5E01DD5A9D4A6E7B1E00CD106D5EA

:100A1600D7D4B09902C011D401C0DCCF089512D545

:100A2600E03021F4EAE07E2EE9E04E2E1BD4FED320

:100A360021F4E9E17E2EE5E04E2E04D5E23021F4E4

:100A4600E2E37E2EE3E04E2EFDD4E33021F4E4E62D

:100A56007E2EE1E04E2E089535D432D4A2EFB1E0D9

:100A660036D433D4A8E7B1E0DED0B6D4E1D4EBE097

:100A7600E7D473D474D477D411F078D409F015C0C0

:100A860078D431F0E0D3D2D310F0A3D4BED405C0CD

:100A9600A0D4E83210F4D7D3CCD39ED4C9D4EBE09B

:100AA600CFD45BD4A9E8B1E0BED08AD4B0990BC04C

:100AB600C4D3DFD3EA0FFB1FFF93EF937AD4AF9132

:100AC600BF91AFD701C0D6CF0895C8D72DD40E2F6A

:100AD600ACE2B1E039D5F6D3F3D3A4E1B2E0B2D0BB

:100AE600BED3E4E6A6D72ADD89D357D44DD4A13E9A

:100AF600E5EABE07E1E08E07E0E09E0788F0E0E663

:100B0600FAEE60E070E0E0938B01F0938C01609365

:100B16008D0170938E01E6E093D4A7E8B0E092D001

:100B26007DD4A2E304D467D410F4E7E001C0E6E084

:100B3600EA93CBD312D4B1990FC091D374D310E0FA

:100B46001A3F50F4AAE0F3D3F9DCB19902C08599B3

:100B560001C002C01F5FF4CF859911C0AAEFE7D389

:100B660084D319F426D472D308C083D3EA0FFB1FAB

:100B7600FF93EF931ED4AF91BF9153D701C0B0CF6F

:100B8600E02F6DD356D74AD4099119910895AA93A7

:100B9600E5B3E07FAE2FE881E295EF70EA2BE5BB87

:100BA60054D4C59A52D4C59850D484C0AA93A88167

:100BB600EEDFE881E295E883A881E9DF81E18A95A5

:100BC600F1F778C0AA93A981F1DF43D40BC0AA93A9

:100BD600E881F0E0E156FE4FE081A981AE0FE6DF45

:100BE600B980A88022960895A2E0E0DFA3E09FD313

:100BF600ACE0DCDFA1E0DADFA3E099D3E0E0AE2EE3

:100C0600BE2E0895AA93A881AA3011F0BD1440F013

:100C160059D3A394AA2DDBDFA881AA3009F44AC0D0

:100C2600B39417D447C0BA93AA931A93A981BA81E9

:100C3600ED91A983BA831E2FE03019F0A12FE2DFD0

:100C4600F5CF0FC00BD41A93E981FA813196E98367

:100C5600FA833197E4911E2FE03019F0A12FD2DFED

:100C6600F3CF188123960895AA93E4B3EF60E4BB0B

:100C7600BD9ABB9ABC9AC598C398C498D880E88197

:100C8600E058E093A101E881E054E093A201A4E1D9

:100C96004ED3E7D3E6D3E5D3A0E279DF81E28A95A6

:100CA600F1F7A8E283DFA4E081DFA5E87FDFA6E015

:100CB6007DDF9ADF21960895D1D3D0D6D8D3129668

:100CC60072D63097F1F0D3D3D5D38F01309761F038

:100CD6000230E0E01E0770F0F80131978F01AA811B

:100CE600BB811496ED93FC93C2D31296C6D331976B

:100CF600AC81A083BCD357D6FF2312F0B8D3BDD3A3

:100D060005C0B5D3EFEFFFEFED93FC93AED6259676

:100D16000895A4D326979ED610E0AC85BD85E0E065

:100D2600F0E0ED93FC93EA89FB893196EA8BFB8B25

:100D36003197E4912E2FE03009F4F9C0E12FE0302D

:100D460031F4253211F411E001C09DD3EFC0E1303A

:100D5600A1F4253211F497D3E8C012E040E000E098

:100D66002D3211F401E0E2C02B3211F44BE2DEC069

:100D7600203211F440E2DAC002C0E23039F450E029

:100D860013E0203311F40068D1C003C0E33009F04A

:100D9600CDC0203310F02A3308F007C0AAE05A9FCE

:100DA600502DE22FE0535E0FC1C0E22FE33639F437

:100DB60071D373D36FD3A481AA9373D3B6C0E33729

:100DC60031F475D376D378D3ACD11E2F08C0E03773

:100DD60051F46DD36ED370D3AFD11E2F086002606D

:100DE6000F7730E02EC0E43611F0E93611F40460D6

:100DF60002C0E53729F4E6E6F0E063D315E00BC060

:100E0600E83511F4086003C0E83709F08EC0E0E762

:100E1600F0E057D314E002FF11C049D34AD354D3AC

:100E2600AB85AA232AF4EA85FB854FD54DD34DE23F

:100E3600403011F01F5F01C00B7F03C038D339D398

:100E460043D300FD10C0151770F407FF08C002FF5A

:100E560004C00B7F242F115001C020E301C020E203

:100E660012D35150F0CF312F01FF12C0303079F03C

:100E760003FF04C02CD3259124D303C02BD32D917B

:100E86002CD301D3503009F051503150EFCF44C02C

:100E960020E31DD38CD5E887F98719D3329611D371

:100EA600E885F985AA85BB85AE17BF0748F02F5F91

:100EB600A885B985EA85FB85EA1BFB0B05D3F0CF30

:100EC6002A3328F003FF02C0295F01C0295D04FD13

:100ED60019C0213320F4A885B985119709F409C0F2

:100EE600531710F000FF01C011C020E207FF0AC02F

:100EF60020E3006102FF06C00B7F4A93D2D2503036

:100F060009F05150C0D2503009F051503150A885E7

:100F1600B985129708F0BCCF00FF07C0503029F002

:100F26005150E0E2EA93BDD2F9CF10E0FCCEAC8599

:100F3600BD8539D596D564960895FF92F82E2697E5

:100F46008BD5CED2309719F4EFEFFFEF1BC0DE0141

:100F56001696ADD48D01C4D2B4D2E0E0E887E98715

:100F6600DE011A96A4D41FD558D11A930A93EFE539

:100F7600F6E053D1DE011A96CCDE9F01ABD2E0E05B

:100F8600EC93F90170D52A96FF90089567D2A9913E

:100F9600B991E991F99130962AF4E095F095319658

:100FA6006DE26D93E89480E197E20DD088EE93E0D0

:100FB6000AD084E6992707D08AE005D06E2F10D094

:100FC60066276C9308956627E817F90720F063955E

:100FD600E81BF90BC9F7662311F416F00895689417

:100FE600605D6D9308953AD22497E0E0E883E98343

:100FF600EA83EFE3EB8332D5EB85FC85EF3FAFEF7A

:10100600FA0731F464D209D1A0E2B2E07ED07AC008

:10101600EF3FAFE7FA0731F45AD2FFD0A1E2B2E0D0

:1010260074D070C0AC85AA2332F45FD297D262D254

:1010360066D2EDE2EC93A885A73010F0E6E0E887EB

:101046001885E12F1150E03019F05ED2E1D0F9CFCA

:1010560062D22AD34FD210E0E0E0F0E060E87FE30E

:10106600D7D059D204D468F0CCD05BD2D1D01F5F90

:10107600173230F02CD2D1D0A5E2B2E046D042C031

:10108600F0CF103021F43BD2E0E3EC931DC0E12F0A

:101096001150E030C9F038D2A0E0B0E080E09FE324

:1010A60003D3DF01CB0184D0B3D035D29BD389D211

:1010B6000E2F25D23CD2A5D019D4BCD245D33DD2D1

:1010C60093D4EBD217D2E3CFE885E030B9F017D24C

:1010D600EEE2EC93E885E150E887EF5F79F02DD2F8

:1010E60020D208D202D26DD20E2F09D220D225D21A

:1010F600FDD3A0D279D4D1D2FDD1ECCFAE81BF81C0

:10110600E0E0EC93B2D42D960895A8D1E991F99137

:10111600A991B991CD0105900D920020E1F7FC014E

:1011260008959CD1A991B991EE27FF276D91662369

:1011360011F03196FBCF089591D1AA27BB27E991EB

:10114600F9910590002011F01196FBCFFD0108954D

:1011560046D47B816A81F981E88177FB770F67FD49

:101166007160972F9E5781F078F0983190F4AA27F6

:10117600BB27882708948795B795A7959A95D1F7A1

:10118600EA23FB23682305C0E8947727EE27FF2789

:1011960066276F77769508F4606877F9A991B99113

:1011A60089919991EA17FB076807790797FB0895D4

:1011B60016D406D4CDDF15D011F4C4D107C0EEF78E

:1011C600C1D1A0E0B0E080E89FE367D224960895FD

:1011D600E0918B01F0918C0160918D0170918E01EF

:1011E6000895F3D30895E7D3F5D30895AFE8B1E0B2

:1011F6000895EA81FB816C817D810895E72DF0E0F9

:101206000895AA81BB818C819D8108956FD308952D

:10121600EA83FB836C837D830895FA93EA930895AA

:10122600A8E5B0E00895E0E004D40895EED3E130F7

:101236000895EBD3EF5FFDD30895A8ECB0E084C129

:10124600A5E5B0E00895A4E5B0E00895A0E0B0E01B

:101256000895A2E0B0E0F0E0EE0FFF1F0895A6E5C6

:10126600B0E00895A7E5B0E00895EADFCED3E03018

:101276000895E9DFCAD3EDCFAE0FBF1F08956627E5

:101286007727E0938B01F0938C0160938D01709327

:101296008E0108959DDFAAE0B0E080E090E02BD3B8

:1012A600E0938B01F0938C0160938D0170938E0116

:1012B60008958EDF8FD3A0E06DD8E0E0EA9308951D

:1012C600A0E085CCE0E0EA930895A1E080CCBADC0A

:1012D600F9CFE7E0EA93F4CFA1E094DCA3E092DC57

:1012E600A3E090DCA5E08EDCA5E08CDCA7E08ACC50

:1012F600A1E088DCA3E086DCA3E084DCA5E082DC58

:10130600A5E080CCA1E07EDCA3E07CDCA3E07ADC77

:10131600A5E078CCA1E076DCA3E074DCA3E072CC97

:10132600A1E070DCA3E06ECC9ADF6FD30895B0E045

:101336000BC1AEEFB0E086DCD2D7A0918B01B091A5

:101346008C0180918D0190918E01A03AE6E8BE074E

:10135600E1E08E07E0E09E07089548DF64CCE0E018

:101366008699E1E008959E2E89140895E1E0E91535

:101376000895A0E08799A1E0E92DB0E0A7FDBFEFB1

:10138600F0E0EA17FB070895A0918B01B0918C015C

:1013960080918D0190918E010895F6DF37DF8BD213

:1013A600E0938B01F0938C0160938D0170938E0115

:1013B6000895EADFEAE0F0E060E070E0CFD2089559

:1013C600892CA2E0B4CFAFE0B1E03CDCE2E0EA93E6

:1013D6007CCF39DF1AD30895EFE8F1E01EDFE2E2B1

:1013E600F1E01BDFF6CFFF2766277727F3D284E0ED

:1013F600A4DD2896B2CF73D7C7DFA03AE6E8BE07CA

:10140600E1E08E07E0E09E070895E15012D30895CB

:10141600E12FF0E0E130A0E0FA070895D9DEDAD254

:10142600A0E0B8C7EFE8F1E0F8DEE2E2F1E0F5CEE1

:10143600FF2766277727CED284E07FDD289608959A

:10144600EA9343CF0FDFE1D2089582E08A95F1F760

:101456000895C39AA881AADBC3980895BA93AA935C

:101466000895A0E394DB81E28A95F1F70895AA81B5

:10147600BB810895149697D20895ED91FD9131960A

:10148600FE93EE9308952A93AD85BE85EF85F88980

:1014960009950895E889F98908953497E88BF98BB9

:1014A6000895AD85BE85EF85F88909950895F2DF23

:1014B600F4CFA889B989DECFEE83FF83AE81BF81E1

:1014C6000895EE83FF830895EA87FB870895EE81EA

:1014D600FF810895AE81BF810895AE83BF830895CD

:1014E600DE011C96E4D15FD20895E985FA856B8505

:1014F6007C850895E987FA876B877C870895EADFFC

:101506001196EBDF119708957CDEEDECFCEC6CECAC

:101516007DE31AD108956DDEA985BA858B859C85F4

:101526000895E0E0F0E060E271E40ED10895E02F66

:10153600E05DEC93E02FF0E00895A985BA858B85F0

:101546009C85089538D20895109639F08AEF90E078

:101556000197F1F7A8951197C9F70895309760405C

:10156600704009F070580895552342F4503811F42C

:10157600E0FF04C03196691F791F6BF050E85727CA

:1015860011F45F93CFC05F3F31F0660F000C5795A3

:101596006795752F08955F9300200AF0CFC0C8C0E5

:1015A60050E8192E1522880F991F9527550F8795F4

:1015B60050E8072E0522660F771F7527550F67958A

:1015C6000895689401C0E8945F93F2DF703818F0CC

:1015D6007F3F08F4A7C056E1571BAAF4519558302F

:1015E6000EF4593030F0EFEFFFEF6FEF7FE777F94A

:1015F6001AC077275523B9F0EE0FFF1F661F771F16

:101606005A95D1F710C07727583028F0EF2FF62FCC

:10161600672F5850F9CF552331F076956795F79592

:10162600E7955A95D1F700200AF453D15F910895B2

:10163600689401C0E894309760407040B1F000248F

:1016460026F0772312F4009444D1172E7EE1112060

:1016560032F07A95EE0FFF1F661F111CF9CFEF2FA0

:10166600F62F612D5F938ADF5F9108954F93AF0147

:10167600FD01DA01AB01BC01CA01402D012C142E7B

:101686004F910895EA0FFB1F681F0895E095F095A6

:101696006095EF5FFF4F6F4F08955F9381DF90383E

:1016A60071F150E8152604C05F937ADF903839F15E

:1016B600703821F1572F591B2BF112F4D7DFFACFCF

:1016C600583118F0AA27BB278827583028F0AB2FA7

:1016D600B82F88275850F9CF552329F08695B79506

:1016E600A7955A95D9F7502D512572F0CBDF38F4CE

:1016F6006795F795E795739513F420C0B7DF3EDF3E

:101706005F910895D8F7FBCFEA1BFB0B680B51F0EE

:1017160010F40094BBDF662392F3EE0FFF1F661FE3

:101726007A95CBF7EE27FF27662777275F910895EF

:10173600EFEFFFEF6FE77FEF5F910895EFEFFFEFBA

:101746006FE77FE75F9108955F932ADF703851F363

:10175600903841F301240894791F23F41CF30020E8

:101766003AF3ECCF0F921F932F933F934F9311278A

:1017760022279927689FA0018F9F302D410D591F61

:101786006B9F300D411D591F8E9F27D0BF9F25D0BF

:101796006A9F23D0BE9F1DD0AF9F1BD0AE9F110D59

:1017A600291F391F491F591FE32FF42F652F522F69

:1017B6004F913F912F911F910F9066232AF0550F5D

:1017C600EE1FFF1F661F02C073954BF2CDDE5F91C1

:1017D6000895100D211D391F02C0200D311D491F0E

:1017E600591F08955F93DCDE703821F411200AF446

:1017F6009FCFA4CF903809F495CF01240894970B76

:101806001BF4D4F30020F3CF792F1F932F933F932C

:101816004F9311241127222733274427552790E277

:10182600AE17BF078607410730F0AE1BBF0B860B0E

:10183600410B089401C08894551F221F331F111CA9

:10184600AA1FBB1F881F441F9A9551F7F901612DE6

:101856004F913F912F911F91662332F0550FEE1F46

:10186600FF1F661F7A9543F27FDE5F9108959923E5

:101876009AF0772342F0971748F029F4AE17BF077E

:10188600860720F031F098948894089598940894E7

:1018960008951894889408957723C2F7971798F3B4

:1018A600A9F7EA17FB07680788F399F3ECCF00243A

:1018B600AF0DB01D0895EA0FFB1F681F791F08952D

:1018C600AE1BBF0B860B970B0895F195E195F04083

:1018D6000895F09560957095E195FF4F6F4F7F4F96

:1018E600089576956795F795E79508956F2F660F96

:1018F600660B762F08957A9F702D6B9F700DF89F5B

:10190600700DE99F700D6A9F602D710DFB9F600D34

:10191600711DE89F600D711D8827FA9FF02D610DDE

:10192600781FEB9FF00D611D781FEA9FE02DF10DEA

:10193600681F781F08950024112490E1AA0FBB1F89

:10194600001C111C0E1A1F0A18F40E0E1F1E01C0D1

:10195600A1609A9599F7FD01D00108953F934F93A1

:101966005F93002411244427552730E2AA0FBB1F9A

:10197600881F991F001C111C441F551F0E1A1F0A91

:10198600460B570B28F40E0E1F1E461F571F01C08D

:10199600A1603A9559F7FD01BC01D001CA015F91DA

:1019A6004F913F910895ED91FC91119708950590FF

:1019B600F491E02D0895E881F9816A817B8108958B

:1019C600A881B9818A819B810895E883F9836A8316

:1019D6007B8308957A936A93FA93EA9308959A9388

:1019E6008A93BA93AA930895182E862F612D192EDD

:1019F600972F712D1B2EBF2FF12D1A2EAE2FE12DF5

:101A06000895119602D0FE2F1197E199FECFFF930C

:101A1600FFB7F894AEBBBFBBE09AEDB3FFBFFF9133

:101A2600089507D01196EF93EF2F03D0EF911197FA

:101A36000895E19B02C0A895FCCF9FB7F894AEBB72

:101A4600BFBBE09A8DB3E81719F0EDBBE29AE19AB5

:101A56009FBF08955A934A933A932A931A930A93E7

:101A660008955D814C813B812A8119810881089501

:00000001FF
